Forster Tamas in Hungary has a nice set of pictures of his wooden Noux:
http://www.rcsailing.hu/photos/wooden_noux_building_(builder_forster_tamas)/
Down Under, Bill Hutch is also busy building. He has first made a wooden plug, then a mould, and finally moulded a glassfiber hull.
http://radiosailingshop.com.au/index.php?main_page=page&id=6
Phanchita Supasirithanawat (www.rcsails.com) from Bangkok Thailand sent me these pictures of a down-scaled Noux design built to the RG65 rules. It's called a Noux65.
There is a video here http://www.rcsails.com/noux65.htm

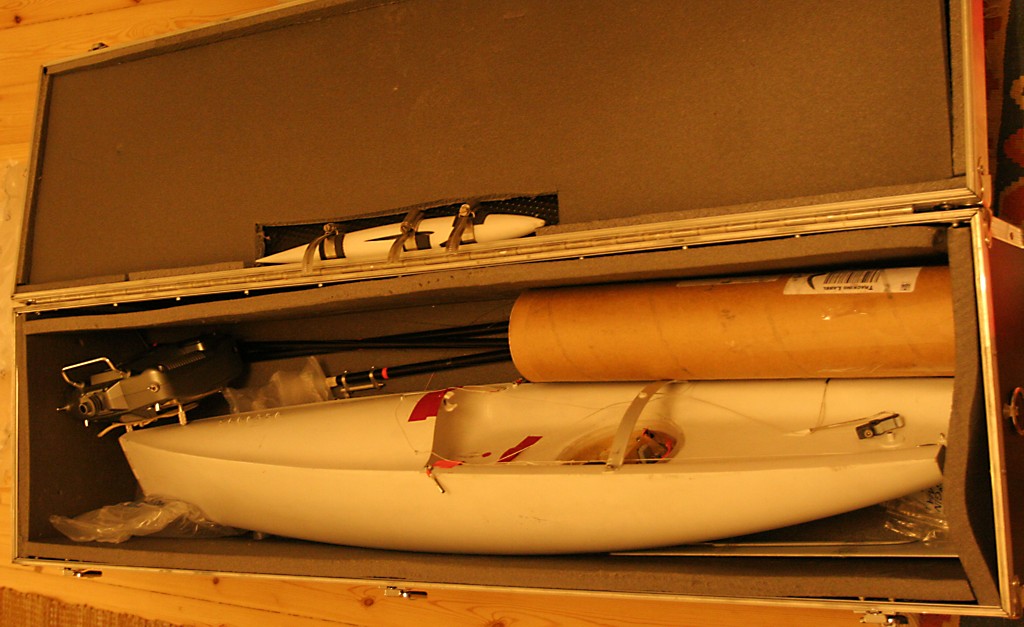

FIN-43, my current Noux-design IOM, is packed and ready for shipping to its new owner next week. I made a holder for the bulb from tube-clamps, and disassmbled the rigs today. Everything fits nicely into my 110x30x26 cm boat box.
The plan for 2009 is to cnc-mill plugs and make moulds for a variant of Pikanto, Graham Bantock's latest design. It's important to use time and effort on good design and good moulds. I want the boat and the components to come out of the moulds almost ready to use. Keep it simple stupid. CAD-design time and time on the cnc-mill is cheap, hours spent moulding and hand-building are expensive (for me anyway). More about that later. It also looks like we will be milling a new set of bulb, fin, and rudder moulds in December-January. We're happy to mill moulds for other people too, but most people don't answer the second email where I tell them a fin-mould costs 500 euros (which we think is reasonable).
Here's a picture of Per Robert Jentsch's home-built Noux.
Steinar from Norway sent me some more pictures of his Noux boats. He has completed the first boat (see below), and is now building a second one.
Another view of the spray-painting setup.
The bulb is home-made, cast in a plaster mould.
Here is Steinar's first boat, now completed and painted. I posted some building pictures earlier here and here.
Steinar asked if there is a Noux-logo. Sure! I just need to post it online in some common format. Stand by...

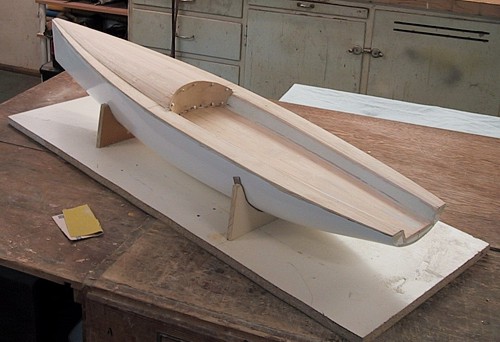

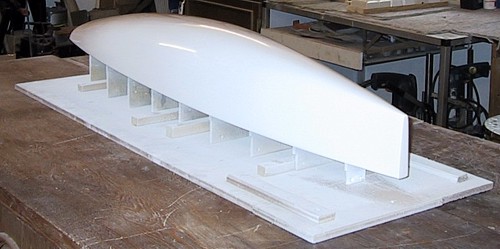

Steinar from Norway wrote to tell me about his Noux project. He started out building a planked wooden Noux (above), but it ended up too heavy, so instead a wooden plug was made (below)

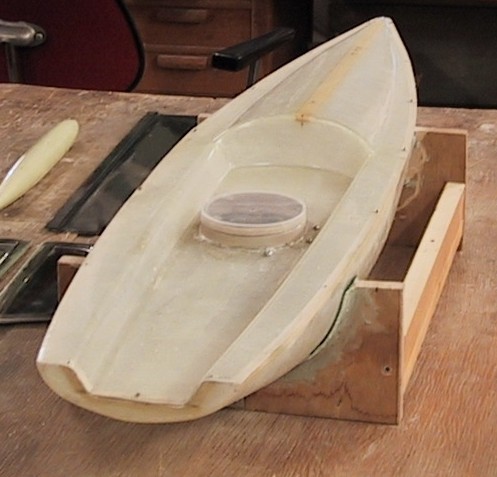

Using this plug Steinar has now made a mould and moulded a few glassfiber Noux hulls. There's no standard deck solution for the Noux yet so Steinar has invented his own, with a central round hatch for access to the electronics.

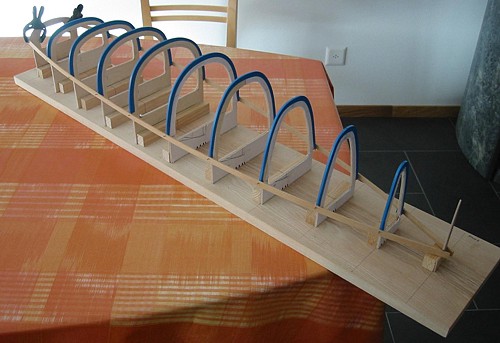

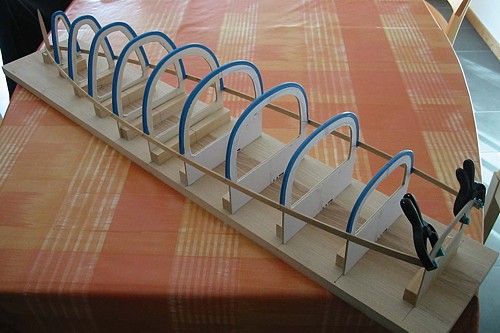

Boris from Switzerland sent me these two pictures of his Noux project which he has just started - thanks !
I've had a couple of requests for reduced shadows for the Noux by people wanting to home-build the boat using planking or other methods. Here are the lines with 1-6mm offset from the outer hull surface. A DXF file is attached to the pdf, click the small paper-clip next to the text to save the DXF as a separate file
Pete Trimmer has been busy finishing his boat and sent me some pictures of his progress: "Well the FAT NOUX now looks more like a boat than a pin cushion"
Aussie Green and Gold paint scheme.
Continue reading
The latest IOM building activity in Finland: a group of builders in Turku have moulded a hull mould from the original Noux plug + designed their own deck plug and made a deck mould.
Continue reading
