Threading and OpenGL, test 2

Here's a simple test program using LibQGLViewer (screen capture with xvidcap). The vertex array and the index array that OpenGL draws (using glDrawElements) are held in a GLData class which holds a mutex. The Viewer class locks the mutex while drawing, and the worker-thread locks the mutex while updating the data. Here the worker task re-positions the original vertex position, signals the Viewer to draw, and then sleeps for 40 ms. When we don't rotate or zoom with the mouse the frame-rate should thus be 25 Hz. Rotating or zooming causes more frequent re-draws and a higher frame-rate.

To gain any real benefit on a multi-core machine I think the worker thread needs to work on a 'dirty' copy of the data, and we only lock the mutex for a minimal time while swapping in the updated data for the real data. Anyone have any good example code for this? Both a case where the worker produces new data at a slow rate (slower than Viewer re-draws), and at a faster rate should be handled.

Here's an UML(ish) diagram drawn with dia:


Multithreaded OpenGL with Qt

I've looked at this example from 2003 and converted it to something that compiles with qt4.7. Here:

Each window is a QGLWidget with its own QThread associated with it that does the drawing. That means the UI should stay responsive despite heavy processing in the threads.

I wonder if this can be made to work with libQGLViewer ?

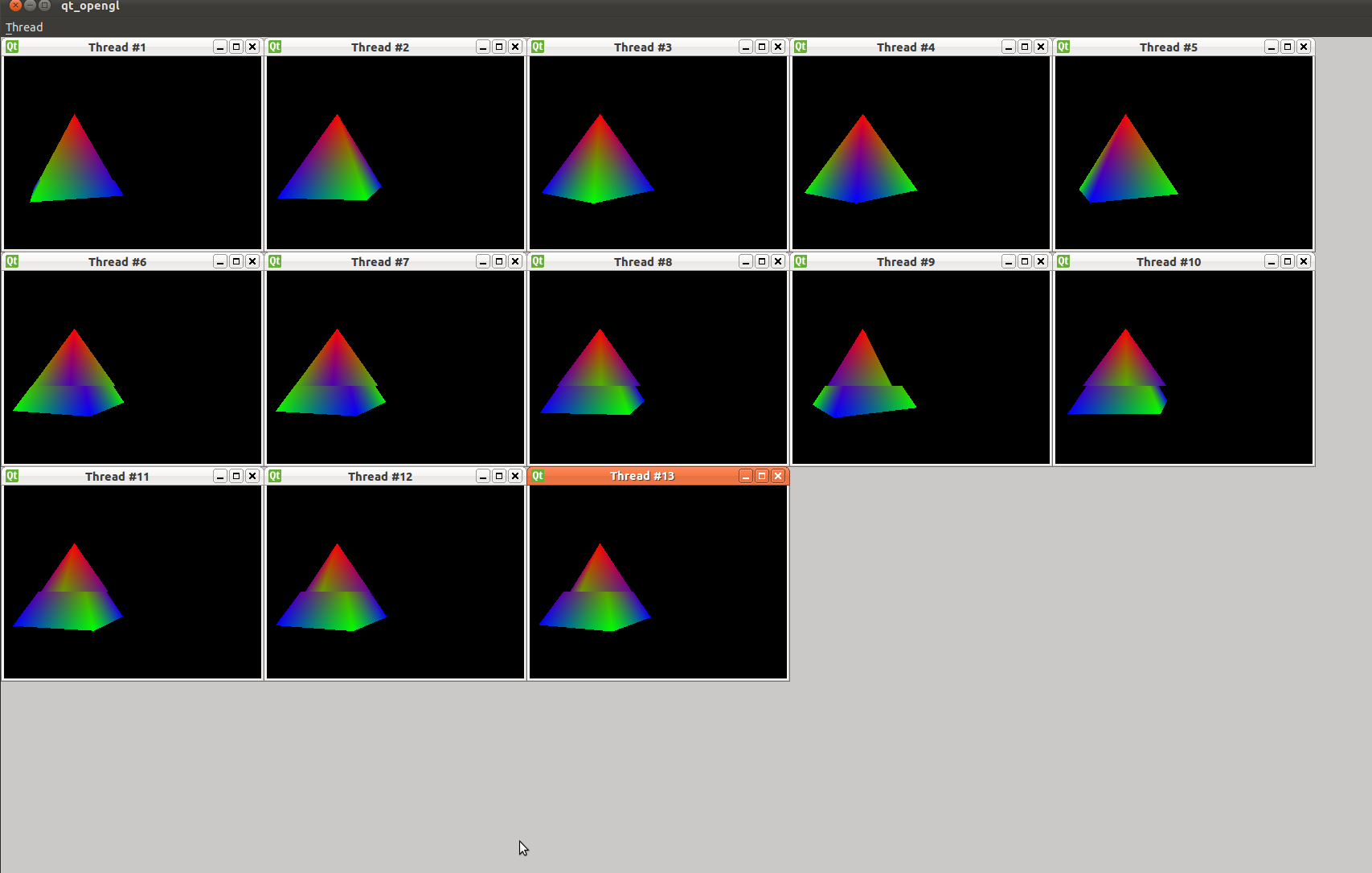

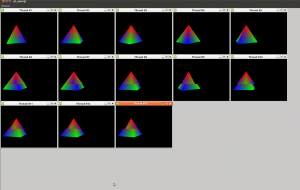

(The screenshot has caught many windows in the middle of a drawing operation. I couldn't get double-buffering to work. In practice it looks very smooth to the eye.)

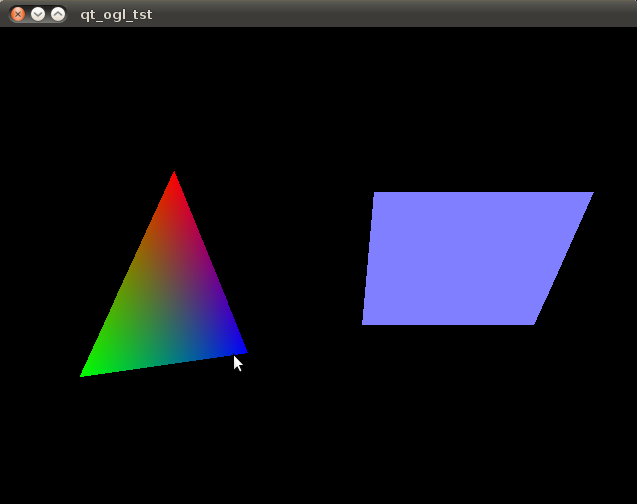

Qt and OpenGL test

It looks like there is no efficient way of updating (adding and removing) triangles in a polydata-surface in VTK, so for the cutting-simulation I am looking at other visualization options. Despite all the tutorials and documentation out there on the interwebs it always takes about two hours to get these "Hello World" examples running...

Download a zip-file with the source and cmake file: (This compiles and runs on Ubuntu 10.04LTS) qtopengl
