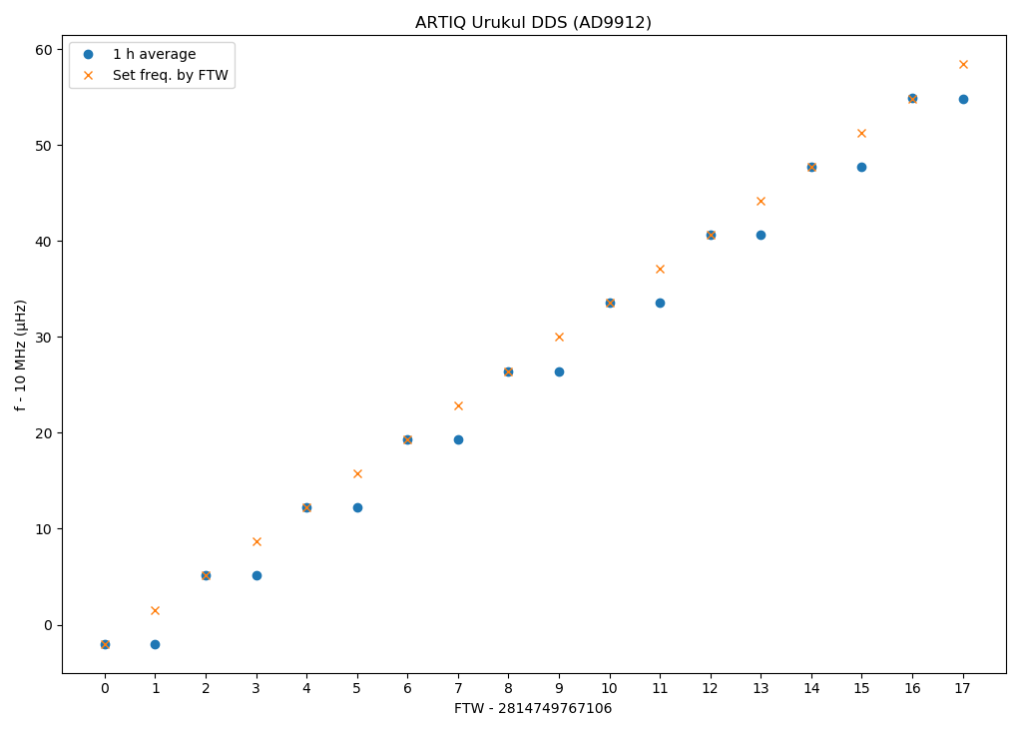

In both cases the output frequency corresponds to an even frequency tuning word (FTW) although we step the frequency by one LSB. In other words the LSB appears to be zero in all cases, even when we write an odd FTW with '1' as the LSB. Instead of the expected 3.55 uHz frequency resolution we see double-sized steps of 7.1 uHz.

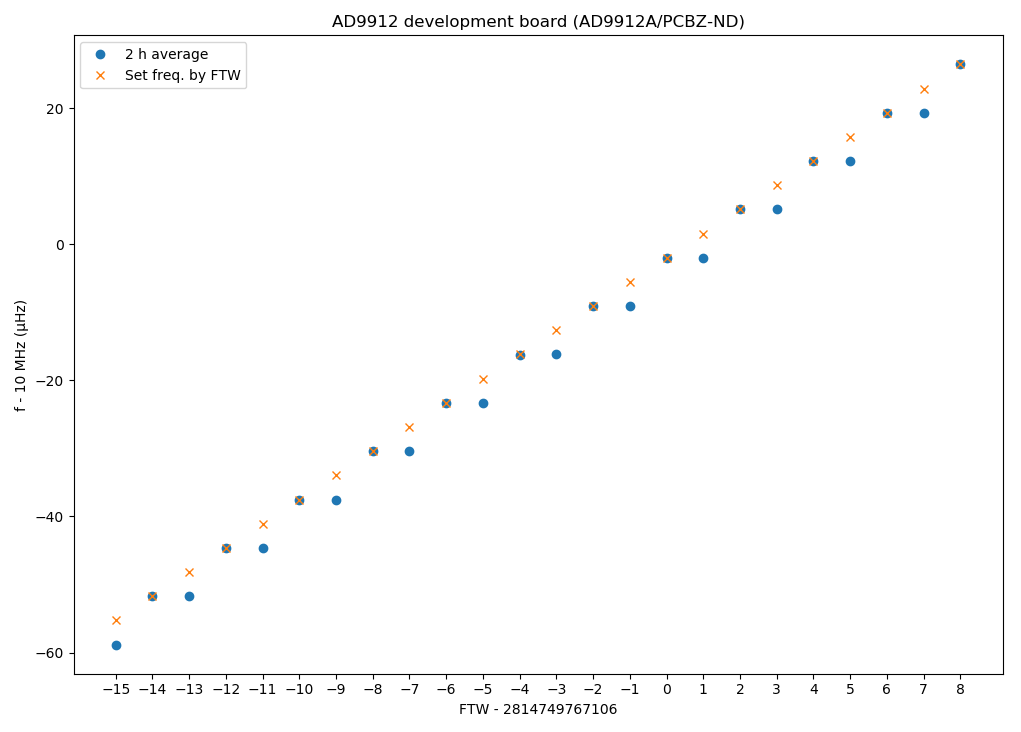

The Urukul measurement was done with a Microsemi 3120A phase-meter and the dev-board was measured using a PICDIV 1PPS-divider followed by a Keysight 53230A time interval counter. The even FTW frequencies agree with the predicted frequency to much better than 0.1 uHz.
Inspired by discussion on time-nuts, here's a revised noise-colour graph. There are a few updates: The PSDs (both phase and frequency) now cross at 1 Hz (with the relation between phase-PSD and frequency-PSD explicitly stated), and the ADEV/MDEV theoretical lines now include the formula for the pre-factor (the old graph only had 'proportional to' here).
An evolution of my PICDIV-board from 2016. Takes 10MHz input and produces 1PPS (one pulse per second). This one has a TADD-2-mini inspired sine-to-square converter on the input (far left), a PIC12F675 with Tom van Baak's PICDIV-code (right), an ICSP-header for programming, and output-buffers inspired by the pulse distribution amplifier. A 3-position DIP-switch (middle left) allows config-changes, and a blinking LED indicates 1PPS (middle right).
Fixed a few bugs in the first PCB-revision and will order boards for version two soon. Eventually to be published on github/ohwr - stay tuned..
