KiCad symbols and footprints

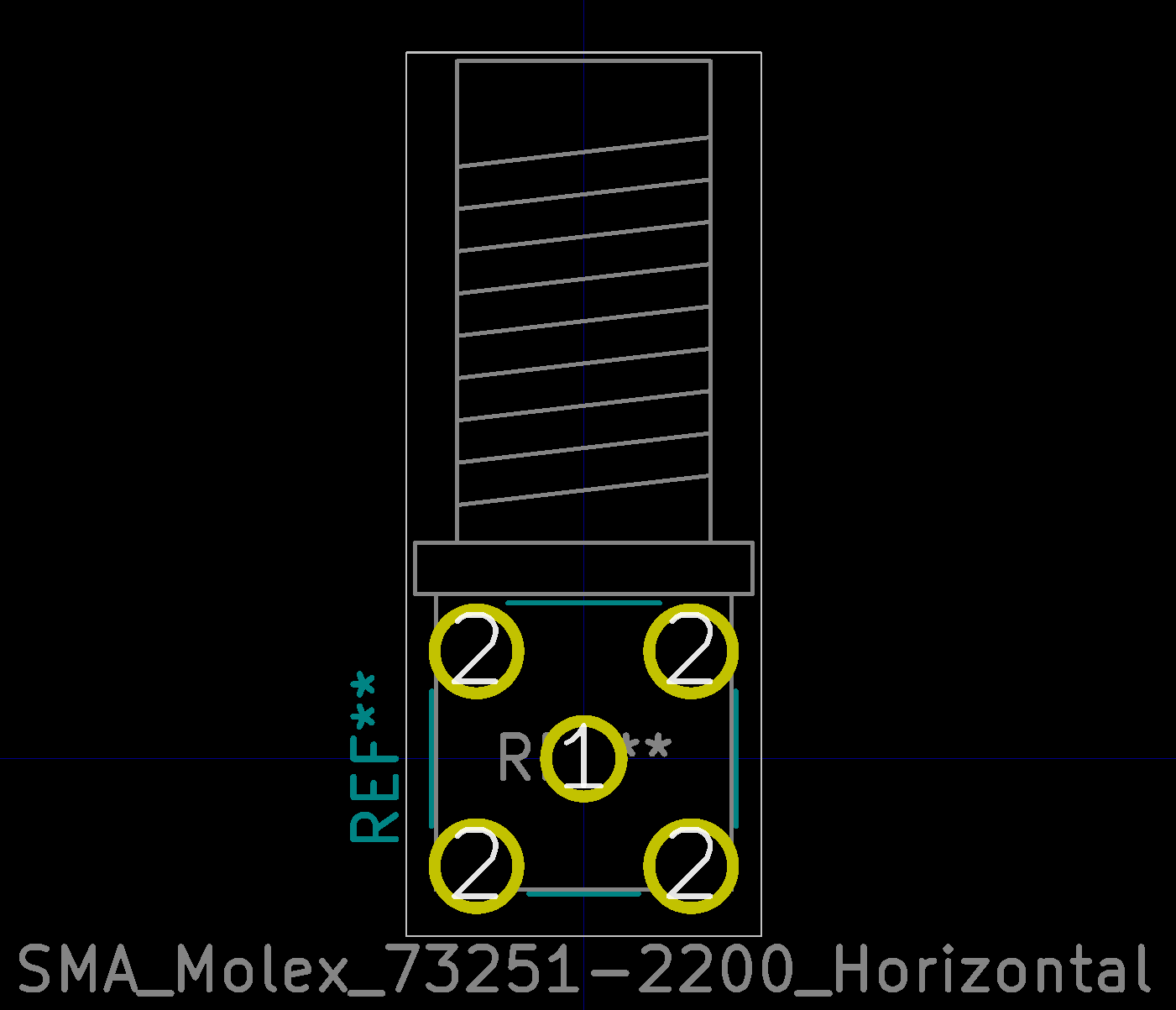

Update: Molex R/A 'long-neck' SMA-connector:

Silkscreen only on board, F.fab drawing shows off-board threaded part.

I sumbitted a few pull-requests to the KiCad libraries with some parts used on recent boards. Let's see if/when they make it into the main/released libraries...

On the to-do list is to submit an SFP-connector and Cage footprint... (unless someone has already done that?).
