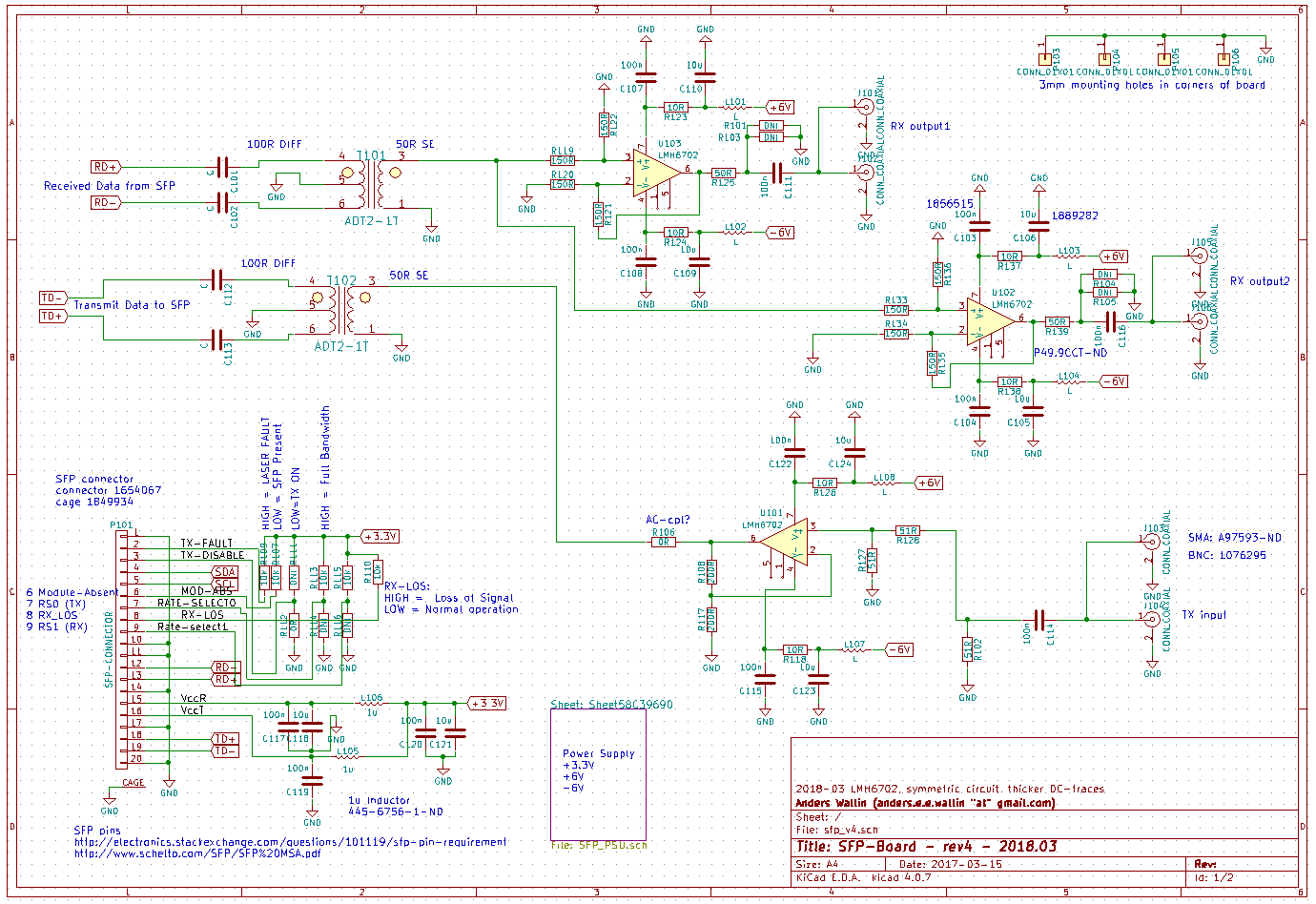

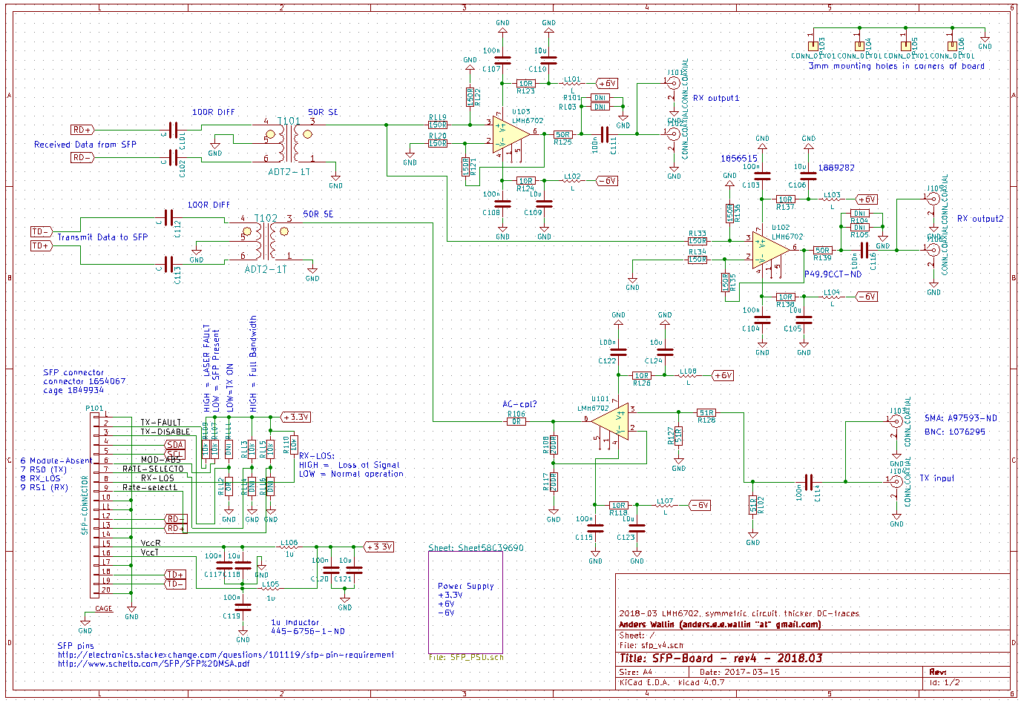

Schematic (+3V3, +6V, -6V voltage regulators not shown)
October 24, 2018 at 07:40
would you please share SFP-board_v4_sch with us? I work for PTB in Germany and we want to distribute our optical 10MHz reference in our lab feeding CAEN digitizers. You would save me a lot of work by sharing the board or at least the package/symbol for the SFP.
October 24, 2018 at 17:17
An initial commit of the design is now on github:
When I have time I will test with some other computers to check if those files open OK.
Let me know if you build this board or a similar one and how it performs!
