pda2017.01_input

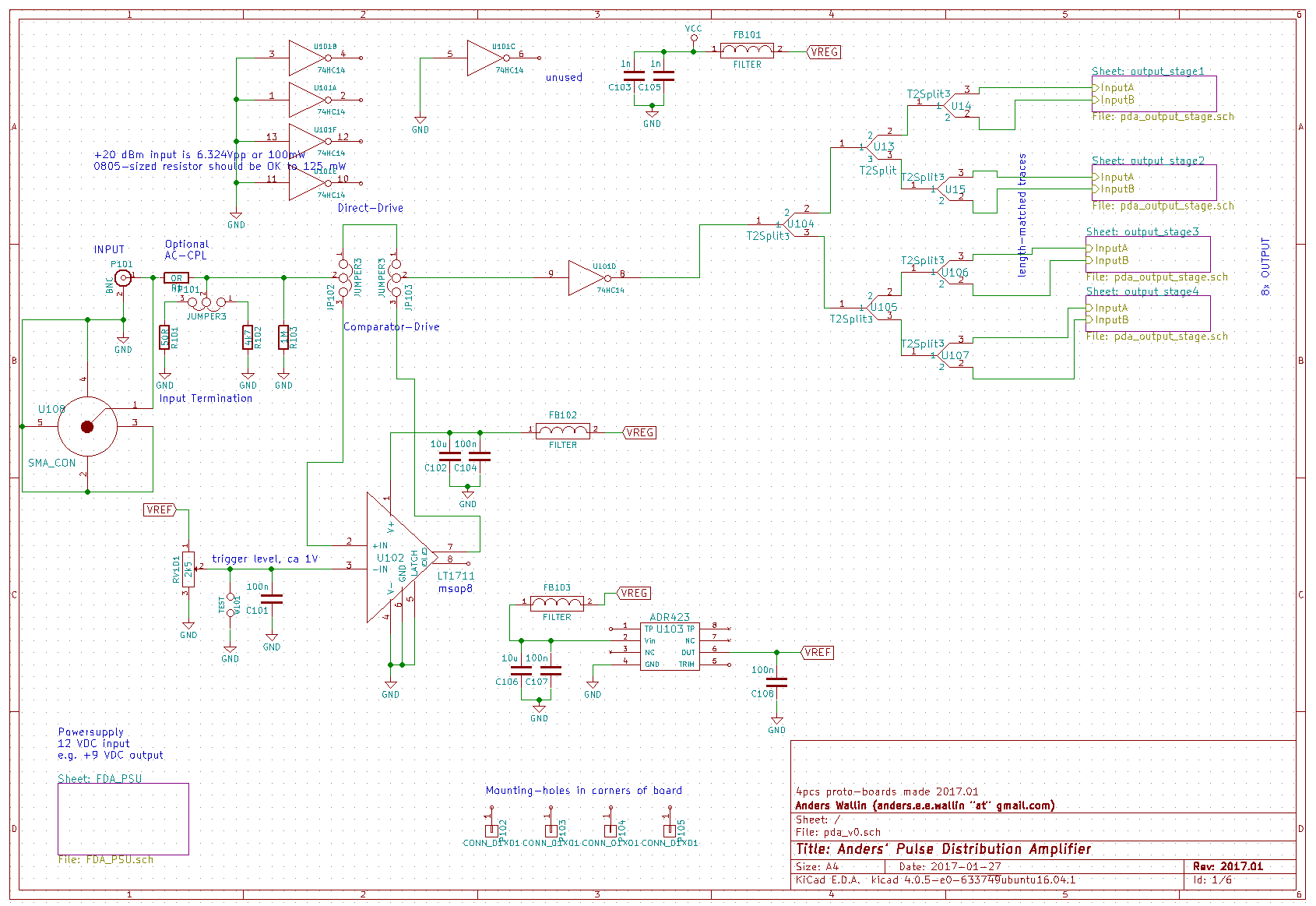

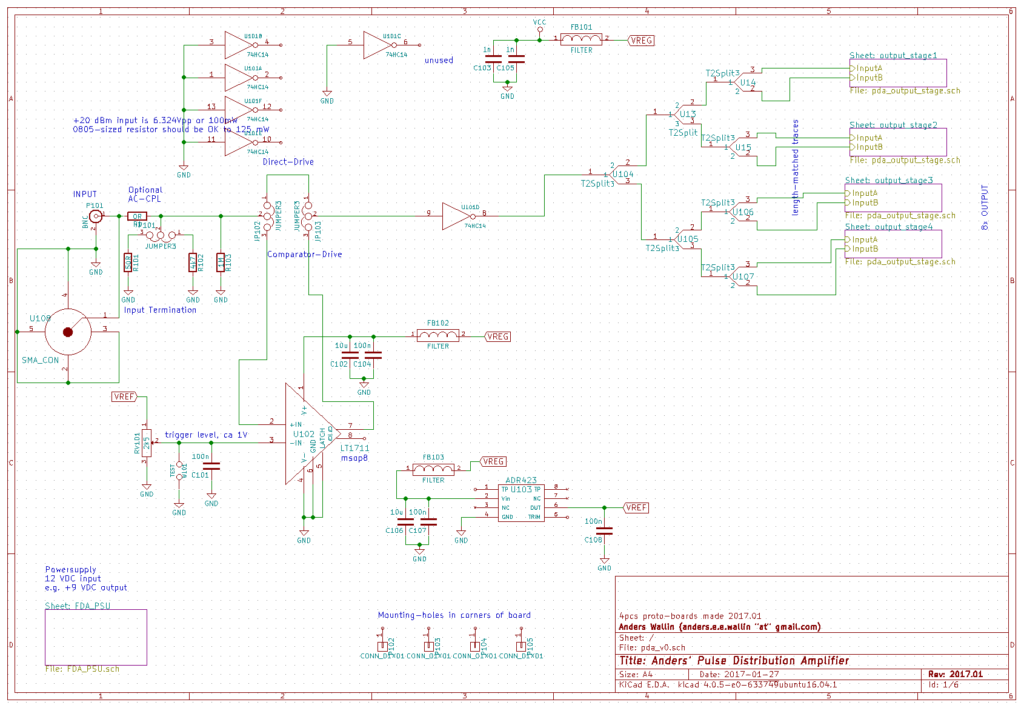

Input section. LT1711 comparator triggers at level set by voltage reference. 74AC14 buffer to 1:8 fan-out for output stages.
