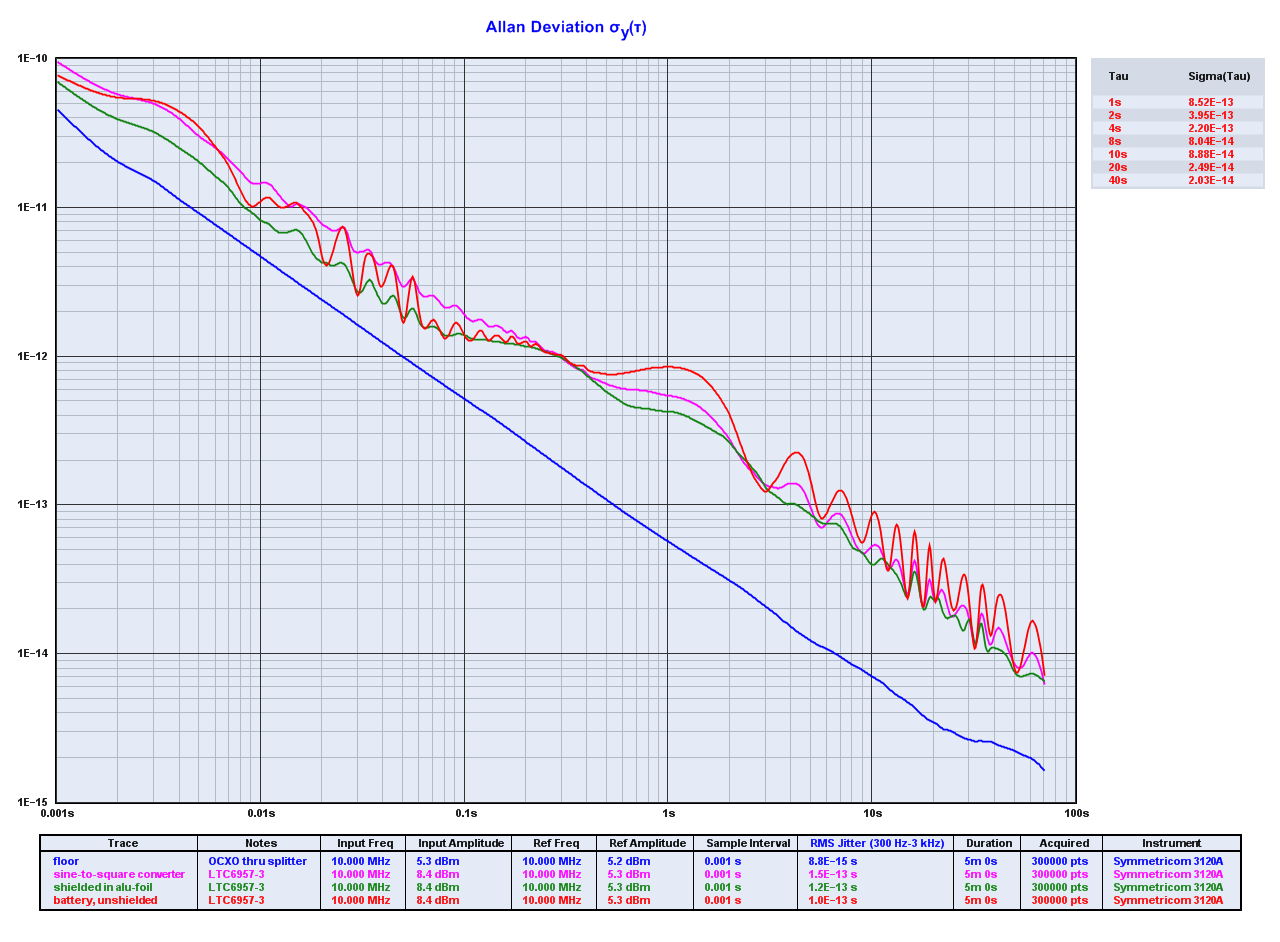

Allan deviation of 10MHz CMOS output. The oscillations are due to spurs in the phase-noise plot. A typical frequency counter will have a noise floor around 1e-11 at 1 s - so the noise from this circuit is well below that.
