Fusion splicing optical fiber

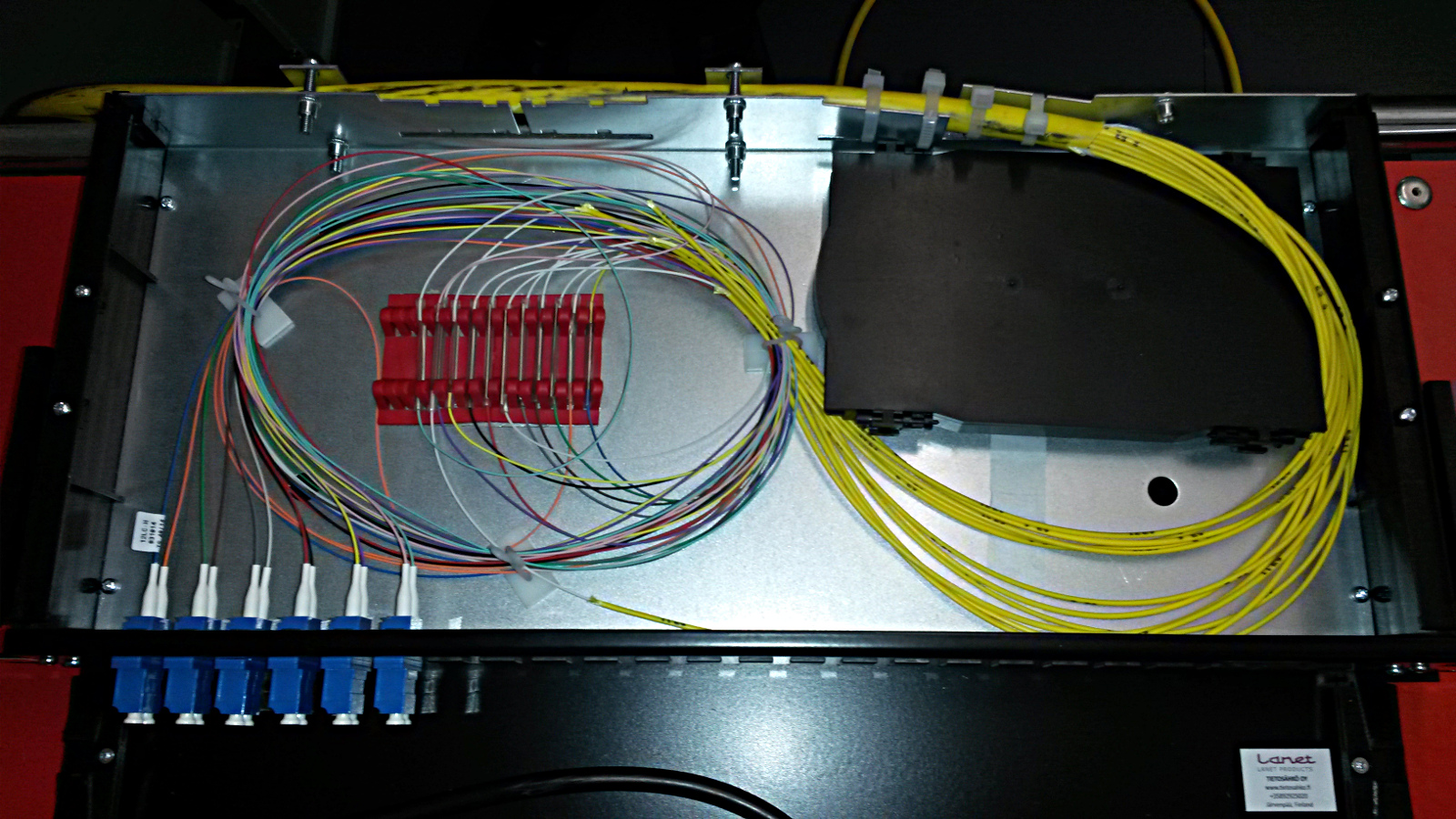

Update: Here's the other end of the 100m cable, spliced a few days later.
2014-10-20_fibers_downstairs

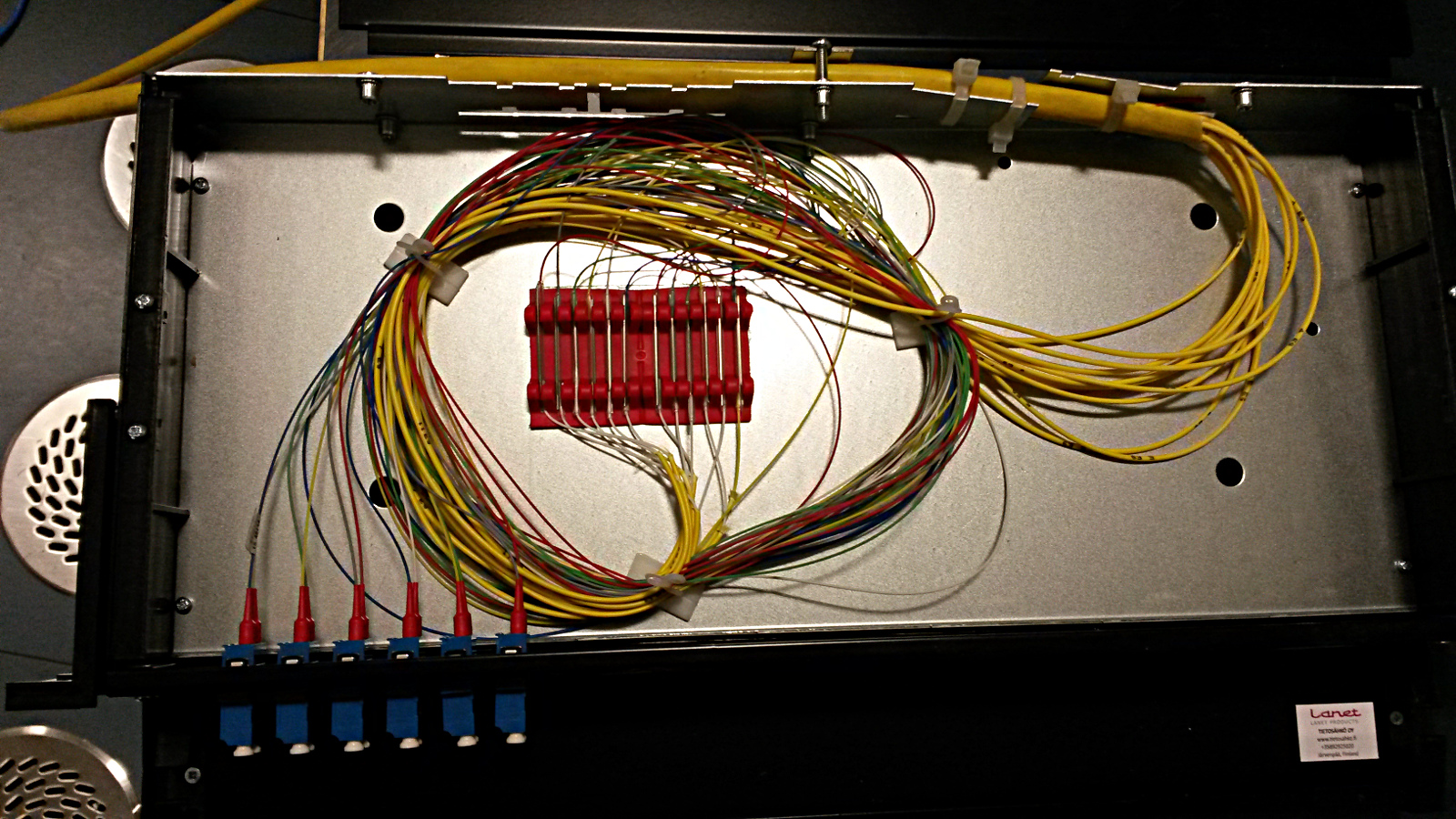

fibers_spliced_2014-10-17

I spent most of the afternoon splicing this thick 12-strand single-mode cable to an LC patch-panel.

The fusion splicer and cleaver we have are quite similar to the ones shown here:
