Optics adapter plate

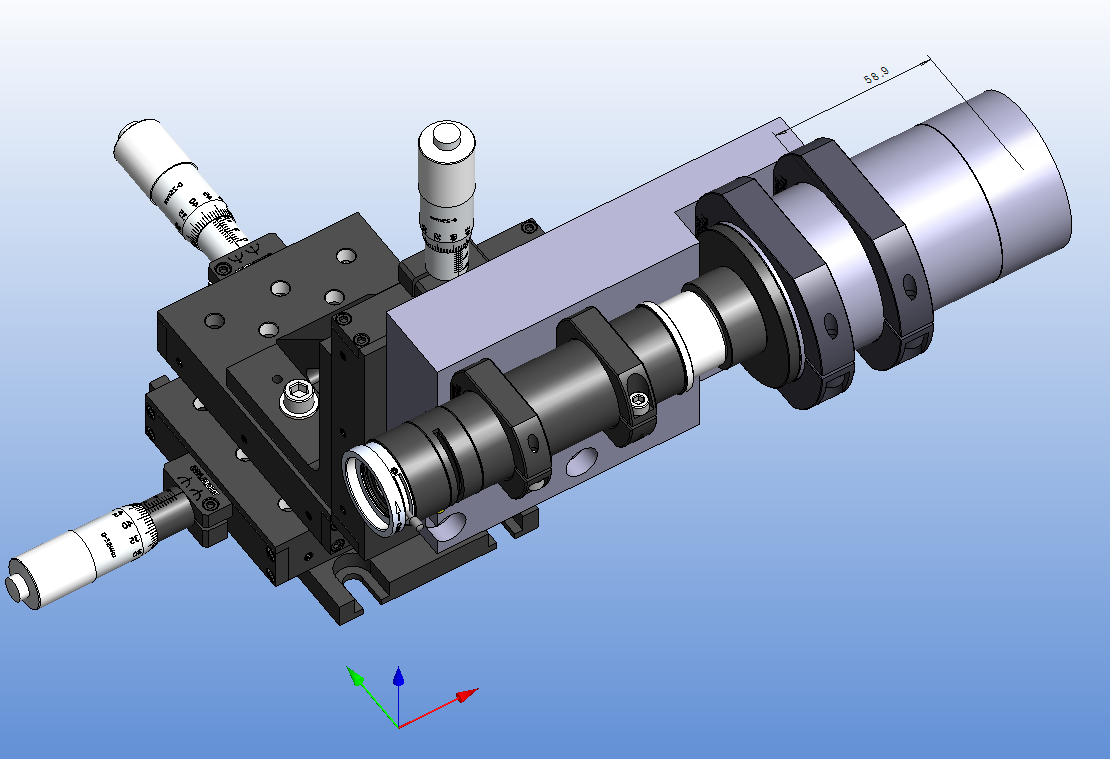

Mechanical design for an optics assembly:
pmt_optics_1

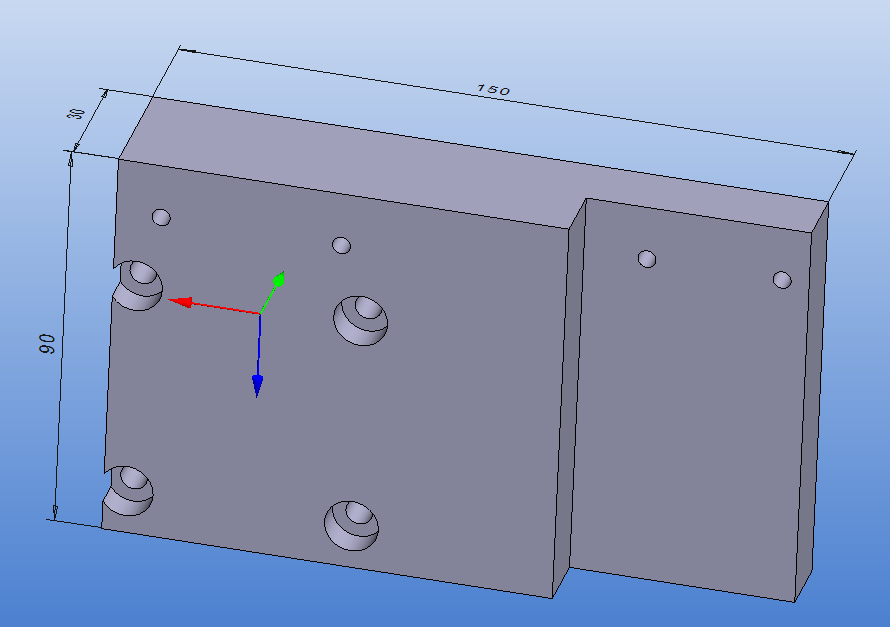

I made an adapter plate between the XYZ translation stage and the 2"/1" lens-rings. The XYZ stage has a 50 mm x 50 mm M6 thread pattern, and the optics are mounted on a straight line with M4 screws through the adapter plate. M6 countersink is 12mm diameter 7mm deep, while the M4 countersink is 8mm diameter and 5mm deep.

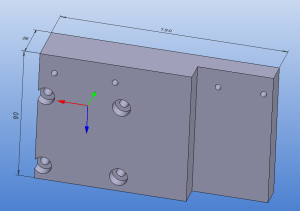

adapter_plate adapter_plate_machined

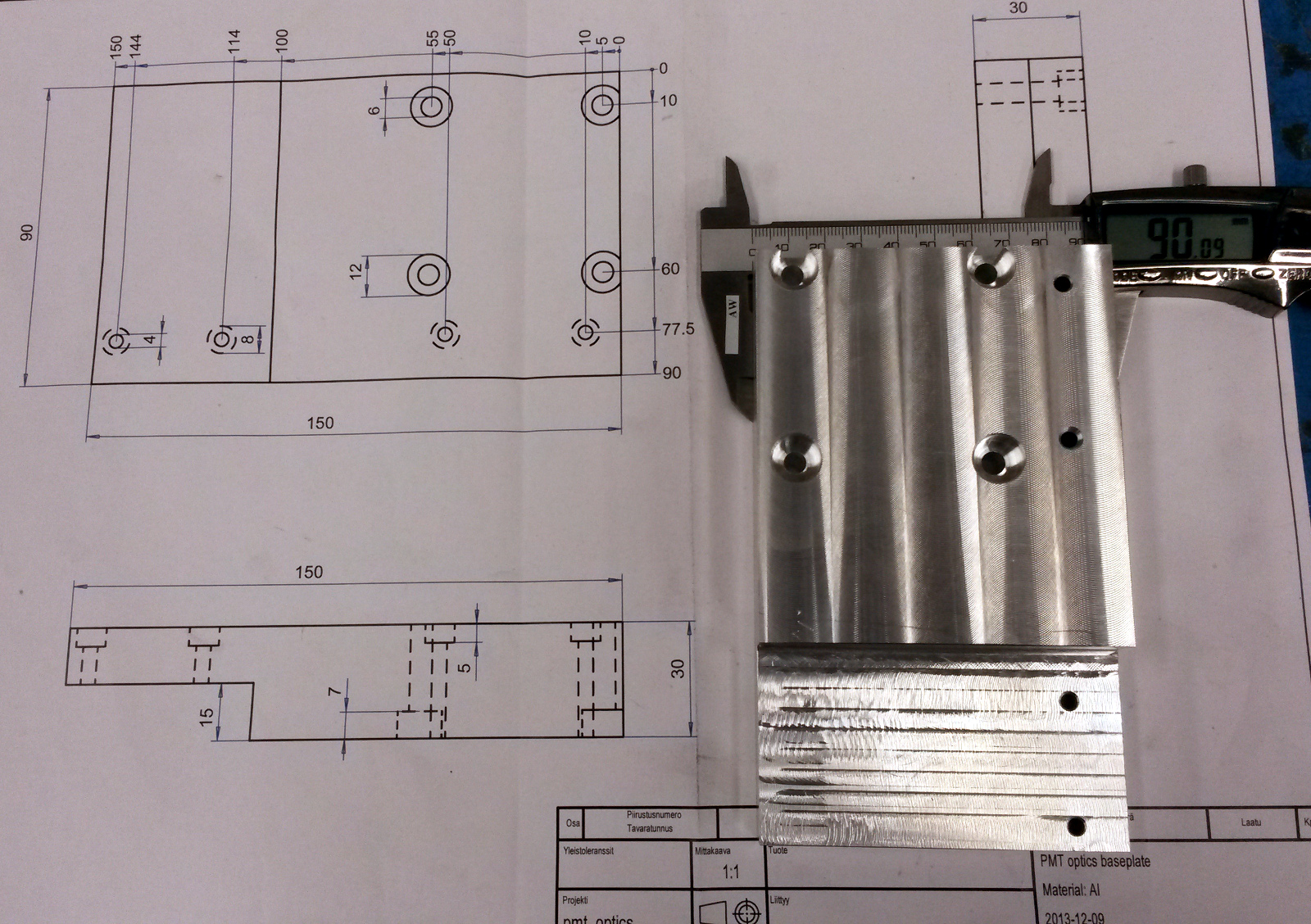

In real life this looks almost like the CAD model:
